Product Introduction
jMedtech friction testing equipment is a high-precision testing instrument. Its main function is to test the lubricity and firmness of various conduit guide wire surface coatings. This testing equipment is designed and manufactured with precision, and functions to visually measure the friction force and friction coefficient, thus providing effective data support and important reference for the quality control of customers' coated products.
Product Advantages
- Using a ball screw driven by a high precision controller (closed loop) to control the product movement up and down and to test the surface friction during the movement, the equipment can accurately measure the tensile forces caused by friction on the sample.
- Force range between 0 to 2000 gram.
- The machine is controlled by a Windows PC and is easy to operate. The user enters the various process parameters, and controls the machine with a touch-screen LCD display.
- Friction testing data curves are displayed in real-time, while the machine automatically generates test reports when the testing is completed.
Friction Tester Specifications
| Equipment Model | JMT-MCL8500 |
| Supply Voltage | AC220~230V; 50Hz; 10A |
| Maximum Power | 2000W |
| Safe Current and Voltage | 220V/8A |
| Device Size (host) | L*W*H=1200*600*1950 (mm) |
| Testing length | 0 ~ 450mm |
| Module Length | 0 ~ 700mm(Customizable) |
| Testing sample OD range | 0.3~20mm |
| Test cycles | 1~ 100 cycles |
| Pulling speed | 0.1~50mm/s |
| Pulling force sensor range | 0~2000g（0~20N） |
| Clamping force sensor range | 0~2000g（0~20N） |
| Pulling force sensor accuracy | 0.6g（0.006N） |
| Clamping force sensor accuracy | 0.6g（0.006N） |
| Water bath temperature | Room temperature~45℃ |
| Clamping silicone pad hardness | 55±5A(Shore hardness) |
| Dimension of the clamping silicone pad | L*W*T=25*15*5（mm） |
| Roughness of the clamping silicone pad (Ra) | 0.6±0.2um |
Customizable extended range of friction force equipment for long catheters

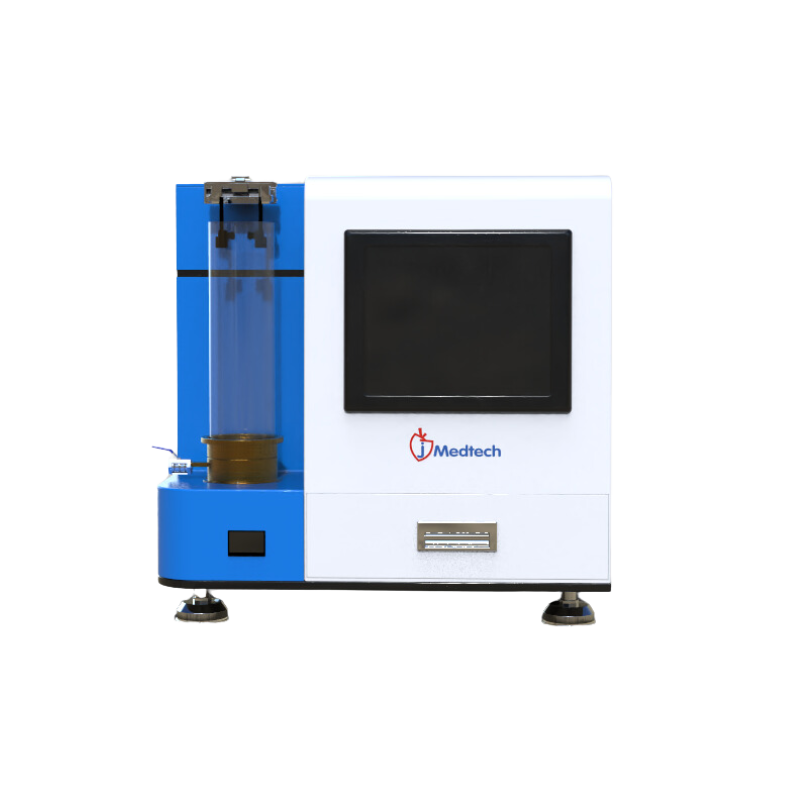

Desktop Friction Tester Specifications
| Equipment Model | JMT-MCL9500 |
| Supply Voltage | AC220~230V; 50Hz; 10A |
| Maximum Power | 2000W |
| Safe Current and Voltage | 220V/8A |
| Device Size (host) | L*W*H=700*500*630 (mm) |
| Testing length | 0 ~ 300mm |
| Testing sample OD range | 0.3~20mm |
| Pulling speed | 0.1~50mm/s |
| Maximum pulling force | 500g |
| Maximum clamping force | 2000g |
| Water bath temperature | Room temperature~45℃ |
