jMedtech offers both standardized and customized FEP heat-shrink tubing products to meet the diverse needs of customers.
Core Advantages
○ Certified under ISO 13485
Certified by ISO 13485 and other biocompatibility standards, suitable for implantable or short-term interventional devices.
○ Maximum Heat-Shrink Ratio 2.0:1
Multiple shrink ratios are available to accommodate different device shapes and manufacturing requirements.
○ Stable Insulation
Excellent dielectric properties ensure precise signal transmission in active medical devices.
○ Transparency and Visibility
High transparency facilitates device assembly and internal visual inspection.

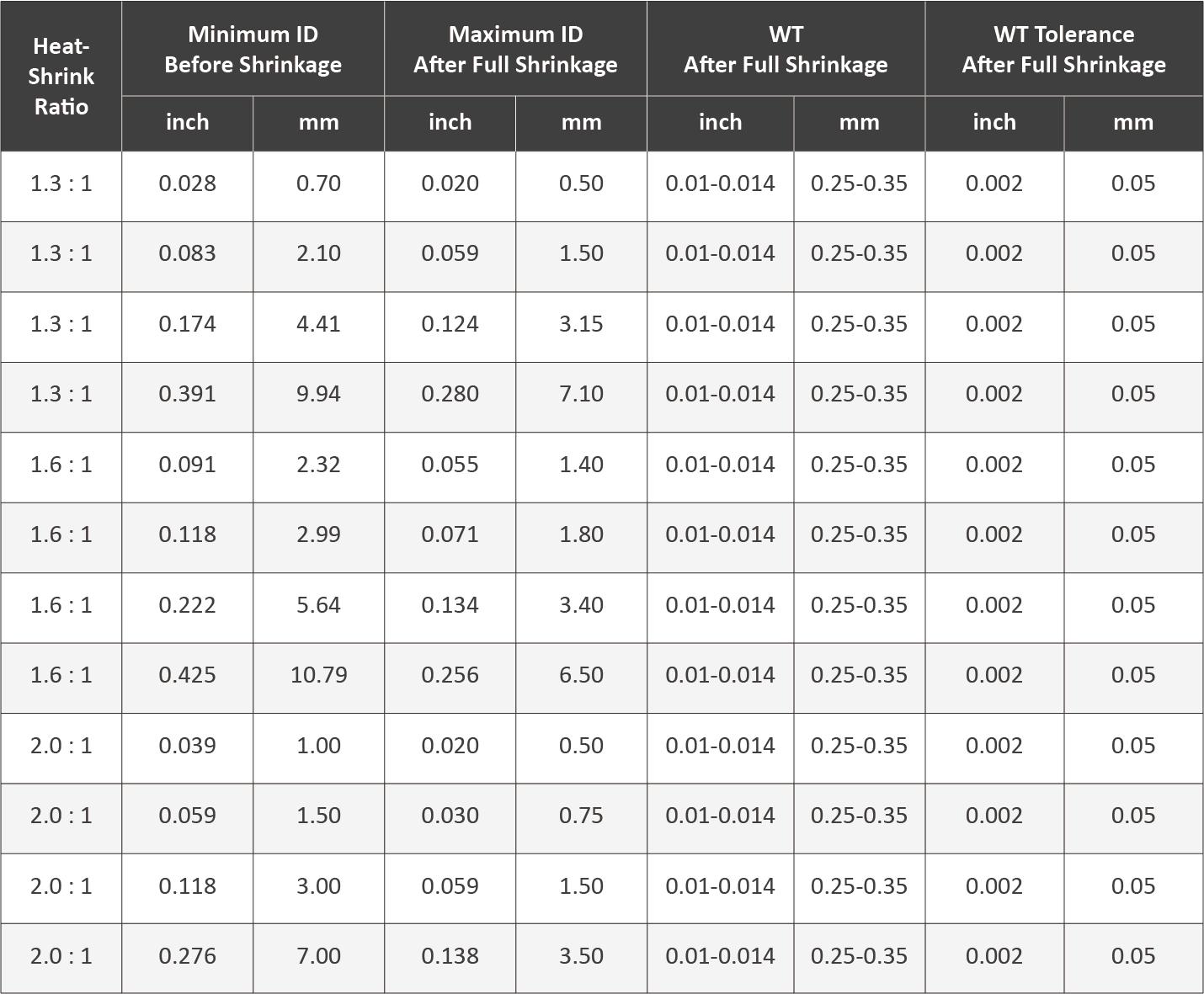

Key Parameters
| Heat - Shrink Ratio | 1.3:1 ~ 2.0:1 |
| Operating Temperature | -65℃ ~ 200℃ |
| Shrinkage Temperature | 200℃ ~ 270℃ |
| Sterilization Method | High-temperature steam / ethylene oxide / dry heat sterilization |
| Expanded ID | 0.020~0.394″ (0.5~10mm) |
| Recovered WT | 0.012~0.020″ (0.0059~0.5mm) |
| Tensile Strength | 9 ~ 15Mpa |
| Yield Elongation | 3.0 ~ 7.3% |
* Shrink ratio, specifications, length, color, and other performance parameters can be customized.
Product Feature
○ Chemically inert, corrosion-resistant
○ Lower shrinkage temperature
○ Material safety compliant with RoHS
○ High flame-retardancy rating

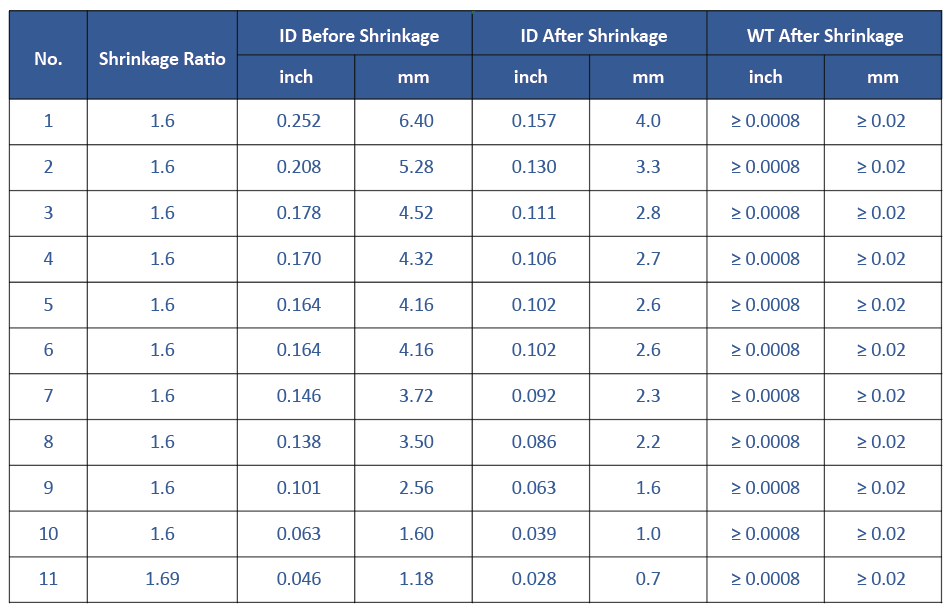

Product Specification
* Custom dimensions, colors and lengths available upon request.
Applications
○ Support in catheter molding and manufacturing
○ Insulation and protection of electronic components in instruments
○ Protection for tubing requiring high transparency
○ Aseptic packaging
If you have any questions about ptfe heat shrink tubing, you can contact the jMedtech expert team for a free consultation.
