- Special Plastics：PE、PP、PC、PS、 HDPE、LDPE and others
- Engineering Plastics ：PEBAX、Nylon、PC、TPU TPE、PU、PETG、PA and others
- Universal Plastics ：PPSU、PEEK、PFA、 ETFE、FEP 、PVDF and others
Coronary intervention, neurovascular intervention, peripheral intervention, endoscope, cardiovascular, minimally invasive surgery, digestive tract, orthopedics, dialysis instruments, etc.
> Excellent mechanical properties, excellent elongation and tensile strength
> Accurate and stable size, uniform wall thickness with small tolerances
> Double and triple layer balloon tubes available
> Stable high pressure strength and fatigue strength
> Optional materials: PA, TPU, PEBAX, PET, custom materials, etc
| Size range | 0.01 - 0.5 "（ 0.254 - 12.7 mm ） |
| Wall thickness range | 0.001 - 0.06 " ( 0.0254 - 1.50 mm ) |
| Tolerance range | ±0.0003"（ 0.0076 mm ）material-dependent |
| Concentricity | ≥ 95% |
| Ovality | ≥ 99% |
> High molding accuracy and stable size
> Smooth and uniform appearance
> Unique mold and setting process
> Strict control of technical processes
> Optional materials: PA, TPU, PEBAX, etc.
| Size range | From 0.01"（ 0.254 mm ) |
| Wall thickness range | From 0.0005"（ 0.0127 mm ） |
| Tolerance range | ±0.0003"（ 0.0076 mm ）material-dependent |

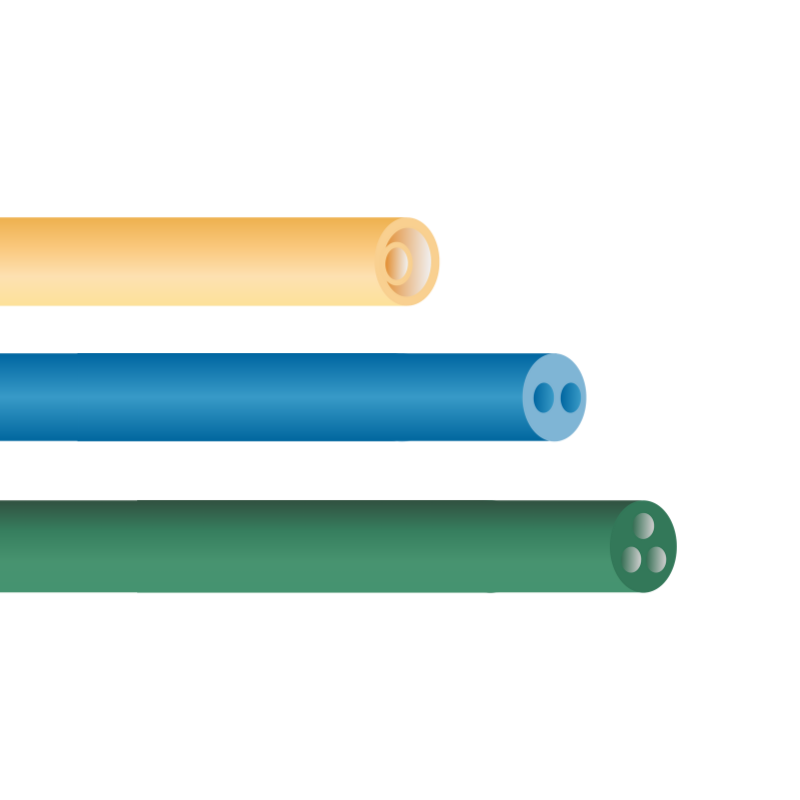

> 2 to 9 lumens available
> Stable outer diameter
> Meet mechanical performance requirements
> Materials and lumen shapes (circle, ellipse, crescent, star) can be customized
> Optional materials: PA, PE, PP, PC, TPU, PEBAX, PPSU, PEEK, ETFE, FEP, PVDF, etc.
| Size range | 0.02 - 0.4 " （ 0.5 - 10.0 mm ） |
| Wall thickness range | 0.001 - 0.06 "（ 0.0254 - 1.5 mm ） |
| Tolerance range | ±0.001"（ 0.0254 mm ）material-dependent |
