The core selection criteria for medical device coating equipment encompass uniform and stable coating effects, precise and stringent tolerance control, and a compliant production system. However, most companies face the practical challenge of limited budgets.
Whether it's intravascular catheters, drug-eluting stents, implantable medical devices, or various diagnostic equipment, the surface coating directly determines the product's core performance characteristics, including surface lubricity, biocompatibility, drug release kinetics, and corrosion resistance. Inappropriate selection of coating equipment can lead to production delays, compliance verification failures, and in severe cases, product recalls, resulting in significant losses.
There is a common misconception in the industry that a single coating process can be suitable for all medical device applications, but the reality is quite the opposite. Various medical devices differ significantly in their geometry, coating material properties, and target film thickness standards. Combined with multiple constraints such as mass production scale and compliance requirements, this creates a comprehensive selection and decision-making system that requires careful evaluation across multiple dimensions.
Coatings are an indispensable core functional layer for medical devices: lubricating coatings reduce frictional resistance during device insertion; without them, catheters cannot smoothly traverse the complex and winding blood vessels of the human body. Drug-releasing coatings allow for the precise and stable release of therapeutic agents such as paclitaxel and sirolimus. Protective coatings isolate the metal substrate from corrosion while ensuring excellent biocompatibility. Barrier coatings prevent abnormal tissue contact and achieve controlled permeation.
Dip coating, though a classic and traditional coating process, has not been phased out by the industry and remains the mainstream process for coating medical devices. Its operational logic is quite simple: the workpiece is immersed in a liquid coating system, and then the substrate is pulled up at a constant, controllable rate. The final coating thickness is determined by the pulling speed, coating viscosity, and gravity, and these factors can be quantitatively derived using the Landau-Levich equation.
For slender devices such as catheters, guidewires, and tubing, dip coating offers particularly significant advantages. These slender components have complex geometries, making it difficult to achieve uniform coating coverage using other processes, while dip coating easily achieves a consistent coating effect. Using this process, we have completed mass production coating for multiple products, ranging from 2Fr microcatheters to 24Fr urinary catheters. Furthermore, dip coating boasts extremely high material transfer and utilization rates, significantly reducing raw material loss compared to spray coating. For costly pharmaceutical coating formulations, this advantage has extremely high economic value.
UV curing uses photoinitiated polymerization triggered by specific UV wavelengths (typically 365 nm, 385 nm, or 405 nm). The payoff: rapid curing, usually 1-10 seconds. Ambient temperature operation suits heat-sensitive substrates. The catch? Not every substrate tolerates UV exposure, and some coating chemistries simply can't work with photoinitiators.
Thermal curing relies on elevated temperatures to drive crosslinking or solvent evaporation. Longer processing times (minutes to hours), but universal substrate compatibility. For thick films where UV light can't penetrate, thermal is often the only practical choice.
Typical medical device coatings? Wet film thicknesses from 1 to 100 micrometers, translating to dry films of 0.1 to 20 micrometers depending on solids content.
The Landau-Levich regime applies when withdrawal velocities stay below critical thresholds where inertial effects take over. Too slow? Gravity dominates and film thins. Too fast? Inertial forces create thicker, unstable films. Your equipment needs precise velocity control across the operating range.
Withdrawal speed is your most direct knob for thickness control. Typical range: 1 mm/min for ultra-thin coatings up to 500 mm/min for thicker functional layers. Precision matters—±1% velocity control ensures reproducible coating thickness batch after batch.
What to specify in equipment:
• Maximum and minimum withdrawal speeds
• Acceleration and deceleration profiles
• Positional accuracy
Servo-driven systems with linear motion guides outperform stepper motor or pneumatic alternatives. For tight thickness tolerances, this isn't optional—it's essential. Multi-axis dipping capability (angled withdrawal, controlled pauses at specific depths) opens up process possibilities for complex geometries.
We've seen facilities try to save money with basic stepper systems, then spend months fighting thickness uniformity issues. The equipment savings evaporated in rework costs.
The reservoir maintains formulation integrity while preventing contamination and solvent loss. Material selection depends on your coating chemistry:
• Stainless steel for aggressive solvents
• Glass-lined vessels for corrosive chemistries
• PTFE-lined systems for ultra-pure water-based coatings
Agitation keeps formulations homogeneous through gentle mixing that avoids air entrainment. Recirculation loops with fine filtration remove particulates while maintaining temperature uniformity. Automated solvent loss compensation keeps concentration stable throughout production runs.
Motion control determines coating reproducibility. Linear guide systems with low-friction bearings enable smooth withdrawal without vibration or judder. Dual-axis gantry systems permit complex motion patterns: angled withdrawal, rotation during immersion, programmable pause sequences.
Closed-loop velocity control with encoder feedback ensures consistent speed regardless of load variations. Servo amplifiers with advanced filtering minimize electrical noise affecting sensitive motion profiles.
Contamination control protects coating integrity. ISO Class 7 (Class 10,000) or better may be required for implantable device coatings—HEPA-filtered enclosures with positive pressure maintenance.
Solvent vapor management protects operators and meets environmental regulations. For flammable solvent systems, intrinsic safety requires appropriate electrical classification. Monitor solvent concentrations to keep exposure below occupational limits.
We've toured facilities where the coating equipment was fine but the exhaust system couldn't keep up with production volumes. Operators wore respirators. The equipment worked, but the operation was unsustainable. Don't let safety be an afterthought.
Curing technology affects production throughput, equipment requirements, facility design, and substrate compatibility. Both UV and thermal curing have distinct advantages—pick based on your application, not ideology.
UV curing uses photoinitiators absorbing specific wavelengths (365, 385, or 405 nm) to initiate polymerization. Cure time: typically 1-10 seconds. This is fast—transformatively fast for production workflows.
Advantages of UV Curing:
• Near-instantaneous cure eliminates downstream transport and holding time
• Ambient temperature operation suits heat-sensitive substrates
• Controlled exposure enables precise process parameter definition
• Reduced floor space compared to thermal ovens
• Lower energy consumption for equivalent throughput
Equipment Requirements:
• Peak irradiance (mW/cm²): Higher enables faster cure but generates heat
• Spectral distribution: Must match photoinitiator absorption peaks
• Dose control: Integration of irradiance over time (mJ/cm²)
• Belt speed for conveyor systems (typically 1-20 m/min)
• Lamp lifetime and replacement scheduling
• Cooling requirements
Limitations: UV-sensitive substrates can't use this method. Some coating chemistries lack suitable photoinitiators. Depth of cure limits thick-film applications. Maintenance requires lamp output monitoring and reflector cleaning.
Thermal curing uses elevated temperatures to drive crosslinking, solvent evaporation, or other cure mechanisms. Compatible with coating chemistries that won't work with UV. Handles thick films that UV can't penetrate.
Advantages of Thermal Curing:
• Compatible with all coating chemistries
• Effective for thick-film applications
• Proven, well-understood technology
• No light source maintenance
• Works with substrates that can't tolerate UV
Equipment Requirements:
• Temperature range and uniformity (typically 40°C-250°C)
• Heating and cooling rates
• Airflow management for solvent vapor removal
• Belt speed or cycle time
• Thermal mass considerations for throughput
• Explosion-proof construction for flammable solvents
Consideration | UV Curing | Thermal Curing |
Energy consumption | Lower (focused energy) | Higher (bulk heating) |
Equipment footprint | Compact | Larger for equivalent throughput |
Throughput | Very high | Moderate |
Substrate compatibility | Limited (UV-sensitive materials) | Universal |
Film thickness limitation | Moderate (depth of cure) | None |
Maintenance requirements | Lamp replacement, optical cleaning | Heating element inspection |
Facility requirements | Electrical capacity, cooling | Ventilation, exhaust systems |
Capital investment | Moderate to high | Low to moderate |
Many production facilities run both technologies. Flexibility beats purity here.
Here's the framework we use with clients when evaluating coating equipment. Skip these steps, and you're flying blind.
Thickness uniformity specs directly determine equipment requirements. Tight tolerances (±5% or better) demand precision motion control, environmental management, and comprehensive process monitoring. Looser tolerances? You can get by with simpler equipment.
Key questions:
• Target coating thickness range?
• Uniformity tolerance?
• How is uniformity measured—globally, locally, or both?
• What happens to device performance if coating isn't uniform?
These answers drive every subsequent decision.
Coating formulations vary in chemical composition and physical properties. Equipment fluid pathways must handle your chemistry.
Compatibility checklist:
• Solvent compatibility with seals, tubing, reservoir
• pH and ionic content effects on metallic components
• Abrasive filler content affecting pump and valve wear
• Particulate generation from formulation components
• Temperature limits for formulation stability
Viscosity specifications:
• Minimum viscosity for thin drug solutions
• Maximum viscosity for viscous polymer solutions
• Temperature sensitivity and process control implications
• Shear sensitivity and pump selection
Here's a trap we see constantly: formulation development proceeds with one viscosity range, but production needs broaden. Specify equipment with viscosity range 2-3x broader than current requirements. Plan for formulation evolution.
Production economics depend on throughput relative to demand. Changeover flexibility matters for multi-product facilities.
Throughput analysis:
• Parts per hour/day at target quality
• Batch size limitations and changeover frequency
• Automation level and labor requirements
• Integration with upstream and downstream processes
Changeover considerations:
• Physical changeover time and complexity
• Parameter programming requirements
• Cleaning and purge requirements between products
• Validation requirements for product changes
Medical device coatings often require cleanroom environments. Equipment selection must address cleanroom compatibility from day one.
Cleanroom considerations:
• Particle generation from equipment operation
• Surface finishes enabling cleanroom-compatible cleaning
• Exhaust and containment for cleanroom integrity
• Material outgassing and contamination control
• Ergonomic access for maintenance
Regulatory alignment:
• Materials of construction documented for biocompatibility assessment
• Equipment validation documentation for quality system compliance
• Traceability for critical process parameters
• Audit trail and electronic record capabilities
Equipment cost is maybe 40% of total cost of ownership. Service capabilities, support responsiveness, and long-term operational costs matter more than the purchase price.
Service evaluation:
• Manufacturer support capabilities and response time commitments
• Spare parts availability and pricing
• Preventive maintenance programs
• Remote diagnostic capabilities
• Training for operating and maintenance personnel
Total cost considerations:
• Installation and qualification costs
• Utility consumption (electricity, compressed air, nitrogen)
• Consumables and wear parts
• Downtime costs during maintenance
• Upgrade paths for future capabilities
Specific applications present unique challenges. Here's how equipment selection varies by device type.
High-volume dip coating territory. These elongated devices require specialized handling that maintains orientation and prevents surface damage.
Equipment requirements:
• Long-stroke dipping for complete device immersion
• Rotating or stationary withdrawal options
• Support fixtures preventing device deformation
• Inline inspection for coating continuity
• Integration with tip-forming and other catheter processes
Typical parameters for catheter lubricious coatings:
• Withdrawal speed: 50-300 mm/min
• Viscosity range: 10-100 cP
• Wet film thickness: 5-50 micrometers
• Dry film thickness: 1-10 micrometers
• Number of dips: 1-3 layers
We've coated thousands of catheters. The key insight: fixture design matters as much as coating parameters. A poorly designed fixture creates defects no parameter adjustment will fix.
Drug-eluting stents and drug-coated balloons demand precise drug coating with controlled release kinetics. Ultrasonic spray is typically the right choice here.
Equipment requirements:
• Precise XYZ positioning for stent strut coverage
• Rotating mandrel holders for cylindrical devices
• Drug formulation delivery with minimal dead volume
• UV or thermal curing integrated into production line
• In-process inspection for coating defects
Typical parameters for drug-eluting coatings:
• Flow rate: 0.1-2 mL/min
• Ultrasonic frequency: 40-80 kHz
• Target drug loading: 1-10 micrograms/mm²
• Coating uniformity: ±10% across device
• Curing: UV (1-10 seconds) or thermal (2-5 minutes at 60-80°C)
When your coating uniformity requirements fall below ±10%, the difference between validated performance and scrap often comes down to whether you chose precision ultrasonic equipment or compromised on lower-cost alternatives.
Implantable devices with large planar surfaces—prosthetic components, surgical instruments, diagnostic arrays—need coating equipment handling uniform coverage without edge effects.
Equipment requirements:
• Large work envelope accommodating device dimensions
• Spray or flow coating with programmable patterns
• Reservoir capacity for extended production runs
• Uniform curing across large areas
• Handling systems for heavy or awkwardly shaped devices
Prototype development and clinical trial manufacturing need flexible equipment processing small batches with efficient changeover.
Equipment requirements:
• Laboratory-scale systems with manual or semi-automated operation
• Flexible parameter programming for rapid iteration
• Material-efficient small-volume reservoirs
• Documentation capturing development data
• Scalability assessment for production planning
Start with lab-scale equipment that scales to production. Technology transfer between radically different platforms creates problems.
After seeing dozens of equipment procurements go sideways, we've catalogued the common failure modes. Learn from others' mistakes.
Formulation development typically happens with a single viscosity range. Production reality is broader as formulations evolve or multiple products share equipment.
What goes wrong:
• Equipment upgrade or replacement when new products need different viscosity
• Compromised coating quality at viscosity extremes
• Reduced throughput to accommodate process adjustments
• Potential equipment damage from operation outside design range
How to avoid it:
• Specify equipment with viscosity range 2-3x broader than current requirements
• Conduct viscosity range testing during equipment qualification
• Plan for formulation evolution in initial specifications
• Include viscosity adjustability in coating formulations
jMedtech operates as a comprehensive medical device CDMO providing end-to-end coating capabilities from concept through commercial production. Three ISO 13485 certified manufacturing facilities—over 220,000 square feet total—support manufacturers seeking established coating expertise without capital investment in dedicated equipment.

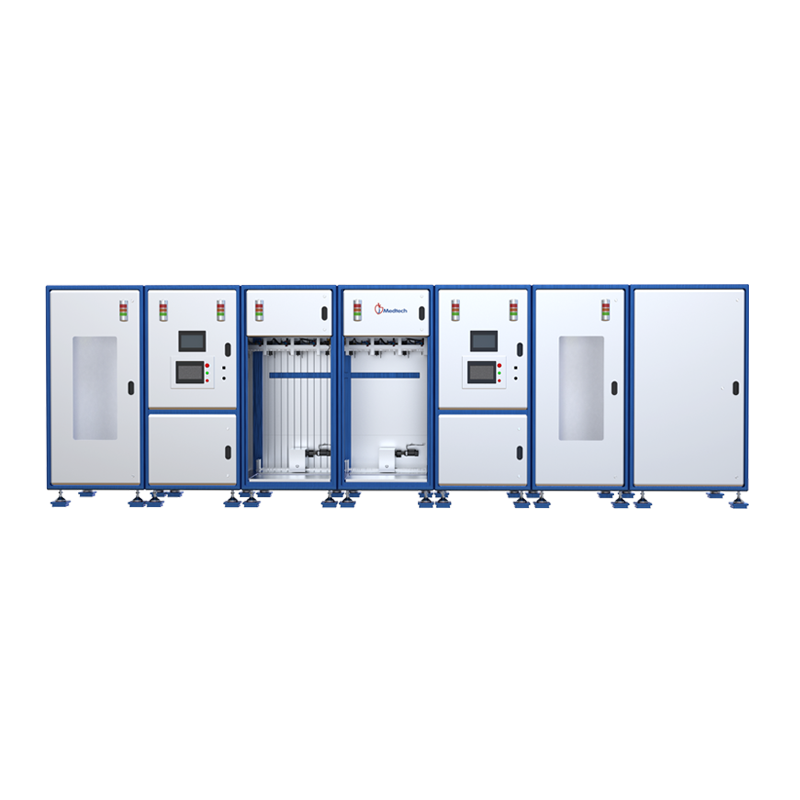

jMedtech's coating facilities incorporate modern equipment platforms supporting diverse technologies: dip coating, spray coating (conventional and ultrasonic), and flow coating methods. Comprehensive curing capabilities include both UV and thermal systems for flexible process selection.
Validation support:
• IQ/OQ/PQ protocol development and execution
• Cleaning validation for product changeover
• Environmental and equipment qualification
• Regulatory submission documentation preparation
Over 600 customers served across more than 30 countries. Extensive experience navigating FDA, CE Mark, and regional approval pathways.
jMedtech's coating capabilities span the full spectrum from early prototype development through commercial scale production. Continuity ensures seamless technology transfer without risks associated with process reproduction at different facilities.
Equipment selection for medical device coating balances technical requirements, economic considerations, and strategic factors. Understanding coating methods, process parameters, and equipment capabilities enables decisions supporting both immediate manufacturing needs and long-term business objectives.
Beyond technical evaluation, successful equipment procurement requires attention to production economics, regulatory compliance, and supplier relationship factors. Common pitfalls—insufficient viscosity range specification, safety compliance oversights, validation documentation gaps—significantly impact manufacturing success and warrant proactive attention.
As medical device technology advances, coating requirements will evolve correspondingly. Equipment selection should accommodate not only current requirements but also anticipated future capabilities, ensuring manufacturing infrastructure remains aligned with technological progress and market demands.
What factors should medical device manufacturers prioritize when selecting coating equipment?
Here's our take: start with coating uniformity requirements and thickness tolerances. These drive equipment specifications and precision requirements more than anything else. Get this wrong, and you're chasing problems forever.
Next, evaluate viscosity range compatibility—your current formulations plus reasonable future expansion. We typically recommend equipment rated for 2-3x your expected viscosity range.
Cleanroom compatibility and regulatory documentation support matter enormously. We've seen beautiful equipment purchases stall for months because validation documentation wasn't included.
Production throughput needs and changeover flexibility deserve equal attention, especially for multi-product facilities. A machine that coats beautifully but takes four hours to change over isn't actually efficient.
Finally—assess total cost of ownership. Include maintenance, consumables, utilities, and downtime costs. Acquisition cost is often the smallest line item.
How do I choose between dip coating and spray coating for my medical device?
The geometry usually decides this for you.
Dip coating works best for elongated devices—catheters, guidewires, tubing—where you need uniform coverage of complex shapes. Moderate viscosity formulations, excellent material efficiency, minimal waste.
Spray coating is the right choice when you're coating specific regions (not the whole device), working with expensive drug formulations where waste minimization impacts economics, or coating large-surface devices.
Within spray coating: conventional spray suits large-area applications with moderate uniformity requirements. Ultrasonic spray provides superior precision for drug-eluting devices—it's not optional for stents and drug-coated balloons, it's necessary.
Still unsure? Run a trial with both methods. The data will tell you which makes sense for your specific product.
What are the main differences between UV and thermal curing for medical device coatings?
Quick comparison: UV curing offers rapid processing (1-10 seconds typically) at ambient temperature, ideal for high throughput and heat-sensitive substrates. The catch—you need photoinitiator-compatible formulations and UV-transparent substrates.
Thermal curing provides universal compatibility with any coating chemistry and handles thick films effectively. But you're looking at longer processing times (minutes to hours) and elevated temperatures that may damage sensitive substrates.
Our recommendation: don't choose based on ideology. Evaluate your specific coating chemistry and substrate, then pick the method that works. Many facilities run both for flexibility.
One practical note: UV systems require more maintenance (lamp replacement, optical cleaning) but thermal systems have higher ongoing energy costs for equivalent throughput. Factor this into your economics.
What validation documentation should I require from coating equipment suppliers?
Insist on: Installation Qualification (IQ) documentation detailing equipment specifications, materials of construction, and factory acceptance testing results. Operational Qualification (OQ) protocols verifying critical parameters (temperature, speed, irradiance control). Performance Qualification (PQ) documentation demonstrating process capability under production conditions.
Software validation documentation is frequently overlooked—demand it. Also request calibration procedures, spare parts traceability records, and preventive maintenance schedules.
Confirm vendor willingness to support regulatory submissions and provide audit documentation. A vendor who can't or won't provide validation support isn't a vendor you want.
Get everything in writing before purchase. Verbal commitments about documentation don't survive equipment deliveries.
How much does medical device coating equipment cost, and what influences pricing?
Budget reality: batch dip coating systems run 50,000−200,000. Fully automated inline production lines can hit $1 million or more.
Key pricing factors:
Automation level drives cost more than almost anything else. Precision requirements matter—you'll pay significantly more for ±2% thickness tolerance versus ±10%. Cleanroom compatibility adds expense. Curing technology integration (UV systems require lamp systems and safety infrastructure) affects pricing.
Ultrasonic spray systems command premiums over conventional spray due to precision capabilities. But remember the total cost picture: equipment acquisition is often just 40% of five-year cost. Include installation, qualification, maintenance, utilities, and downtime.
Our advice: get detailed cost-of-ownership projections from vendors. A more expensive machine with lower maintenance and higher throughput often wins on total cost. The purchase price is just the beginning of the conversation.
